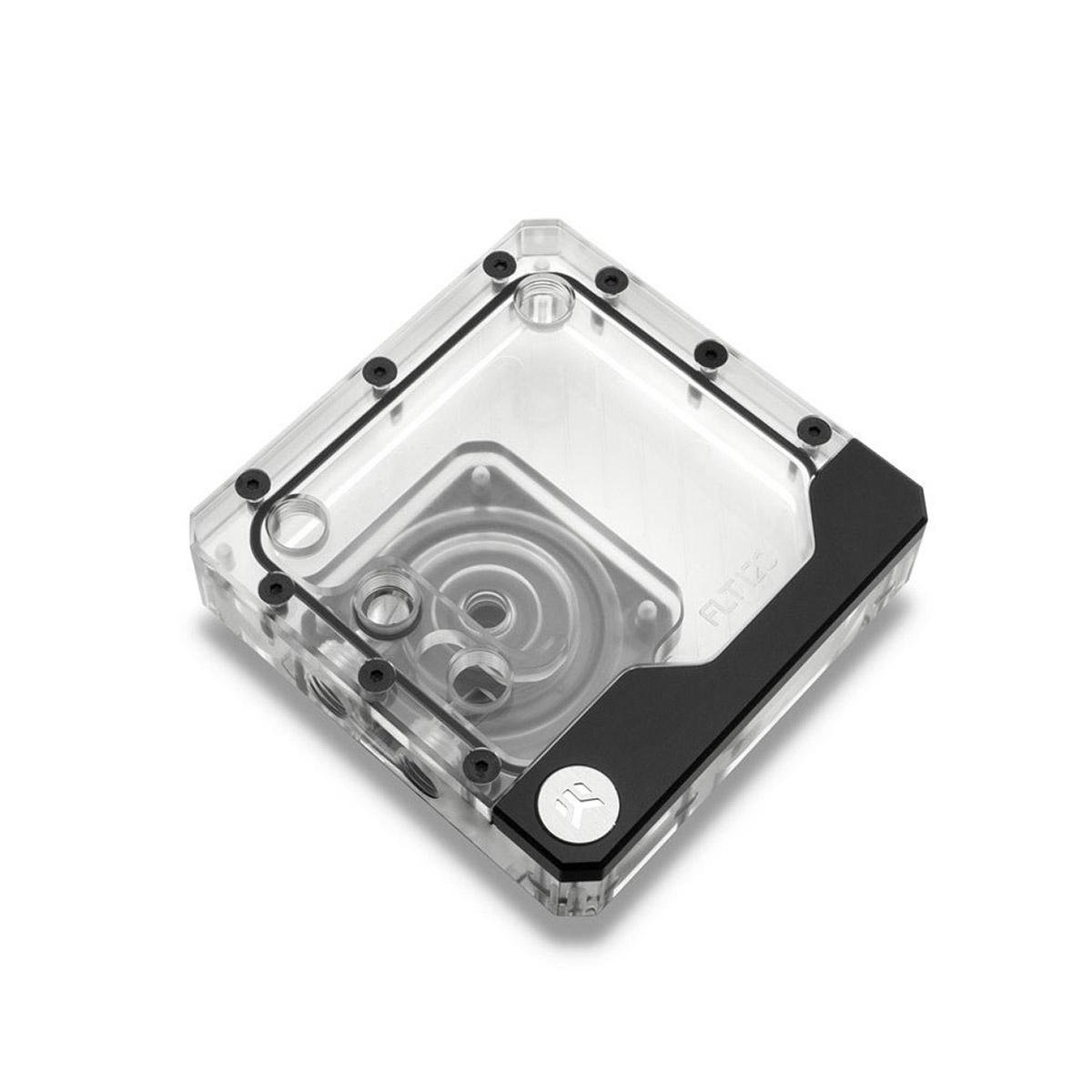

EKWB EK-Quantum Kinetic FLT 120 Pump/Reservoir Combo, DDC PWM, D-RGB, Plexi

All new Flat (FLT) series EK-Quantum Kinetic FLT DDC pump-reservoir units! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.

EK-Quantum Kinetic FLT DDC series pump-reservoir units are equipped with genuine DDC 3.25 pumps, made in Europe, which are capable of delivering flow rates of 1000 liters per hour with a maximum head pressure up to 5.2 meters!

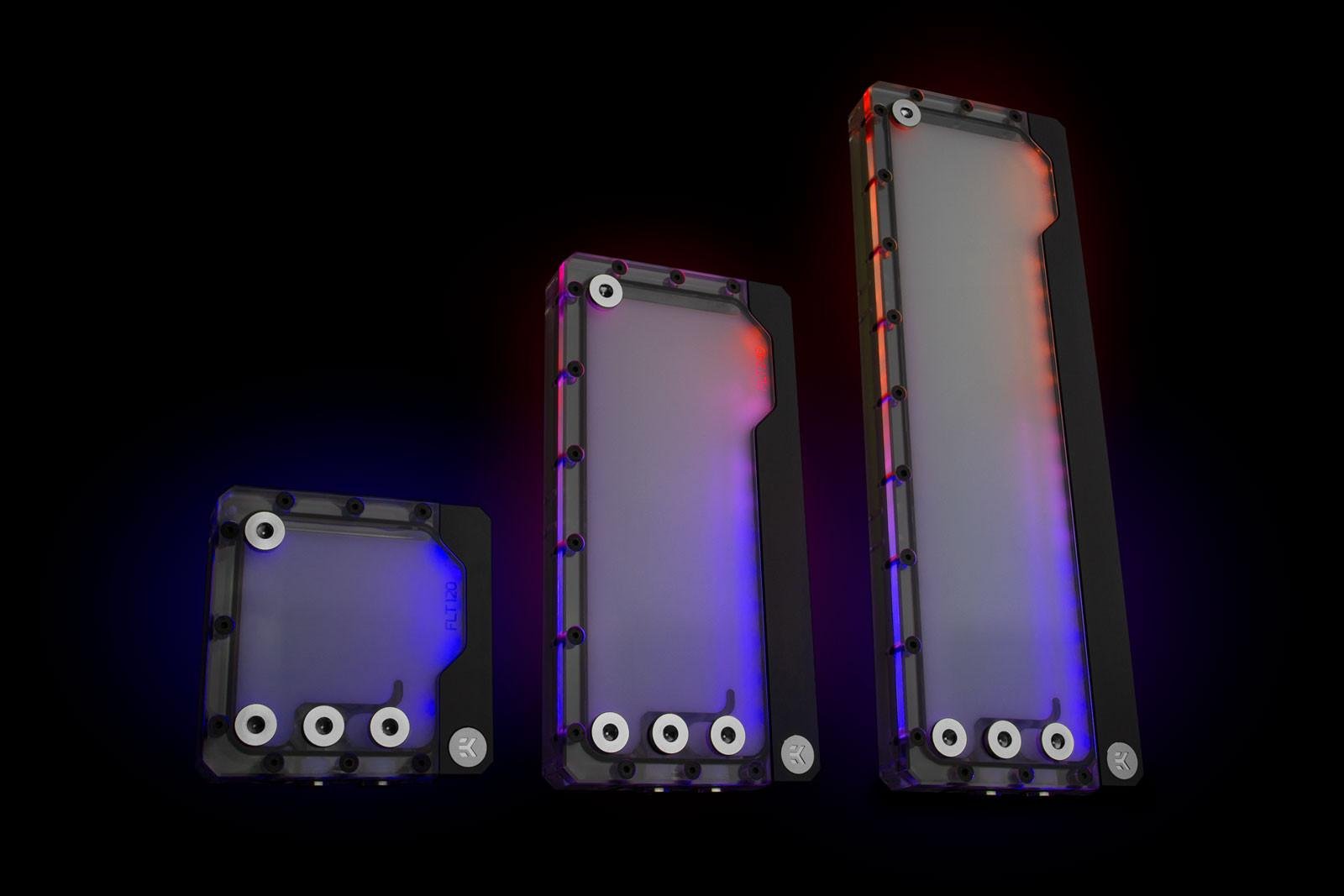

Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible “LED hotspots” as possible.

Technical specifications:

– Size (HxWxT): 125x120x58mm (with mounting system)
– Capacity: ~100ml
– D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties:

– Motor: Electronically commuted ball bearing motor
– Rated voltage: 12 V DC
– Power consumption: 18 W
– Maximum head pressure: up to 5.2m
– Maximum flow rate: up to 1000 L/h
– Maximum liquid temperature: 60 °C
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
– Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Operational regime:

– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

– EK-Quantum Kinetic FLT 120 PWM D-RGB
– Mounting mechanism with all necessary screws for 120mm fan mounting
– Pair of EK reservoir holders with mounting screws
– 4 × G1/4 Plugs
– 1 × Allen key for reservoir holders

Model: 3831109819753
