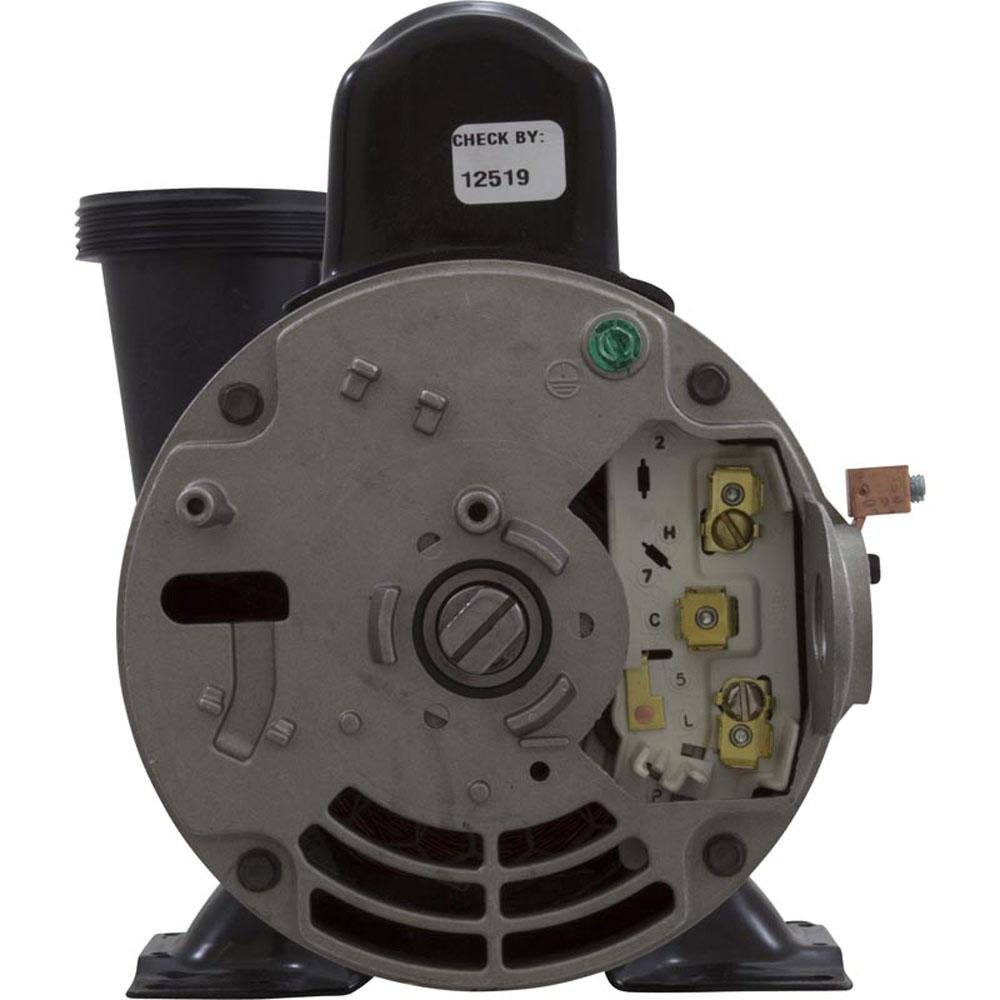

The EX2 delivers high performance with its horsepower reaching up to 3HP. With two speed settings, you can save energy and control the water flow. The EX2’s versatility allows it to be retrofitted to other pumps and fits a 48-frame or 56-frame. It’s the perfect replacement part to your working pump. Waterway’s commitment to design, innovation and quality American made products makes for a solid combination of style and dependability. Center vs. Side Discharge Pumps Swimming pool and spa pumps are classified, in part, according to the orientation of their discharge openings. Center discharge pumps have an opening located in the center of the wet end, while side discharge pumps have an opening located on the side of the wet end. Water is propelled through the openings and flows out through the jets in your spa. Side discharge pumps are up to 60% more efficient for pumping out high volumes of water than center discharge pumps. What the frame size on a spa pump mean? The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor’s ID plate, usually marked with an F for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart, and the 56 frame motor has bolts with spacing more than 4 inches apart.
- True Continuous Rated Horsepower Of 1-1/2, 2, 2-1/2, And 3Hp
- 48-Frame Or 56-Frame, Single Or Dual Speed (Energy Saving)
- Use More Jets Per Pump
- Same Physical Size As Aqua-Flo Xp2, Xp2e (Fits Within The Same Volume Envelope)
- Can Be Used As Substitute Or Retrofit To Aqua-Flo Model Xp2 Or Xp2e Pumps And Similar Pumps And Wet Ends Offered By Other Domestic And Foreign Suppliers
- Made In Usa From Highest Quality Materials With Ul And Cul Certifications
- Ce And Tuv Certification On Export Pumps To
