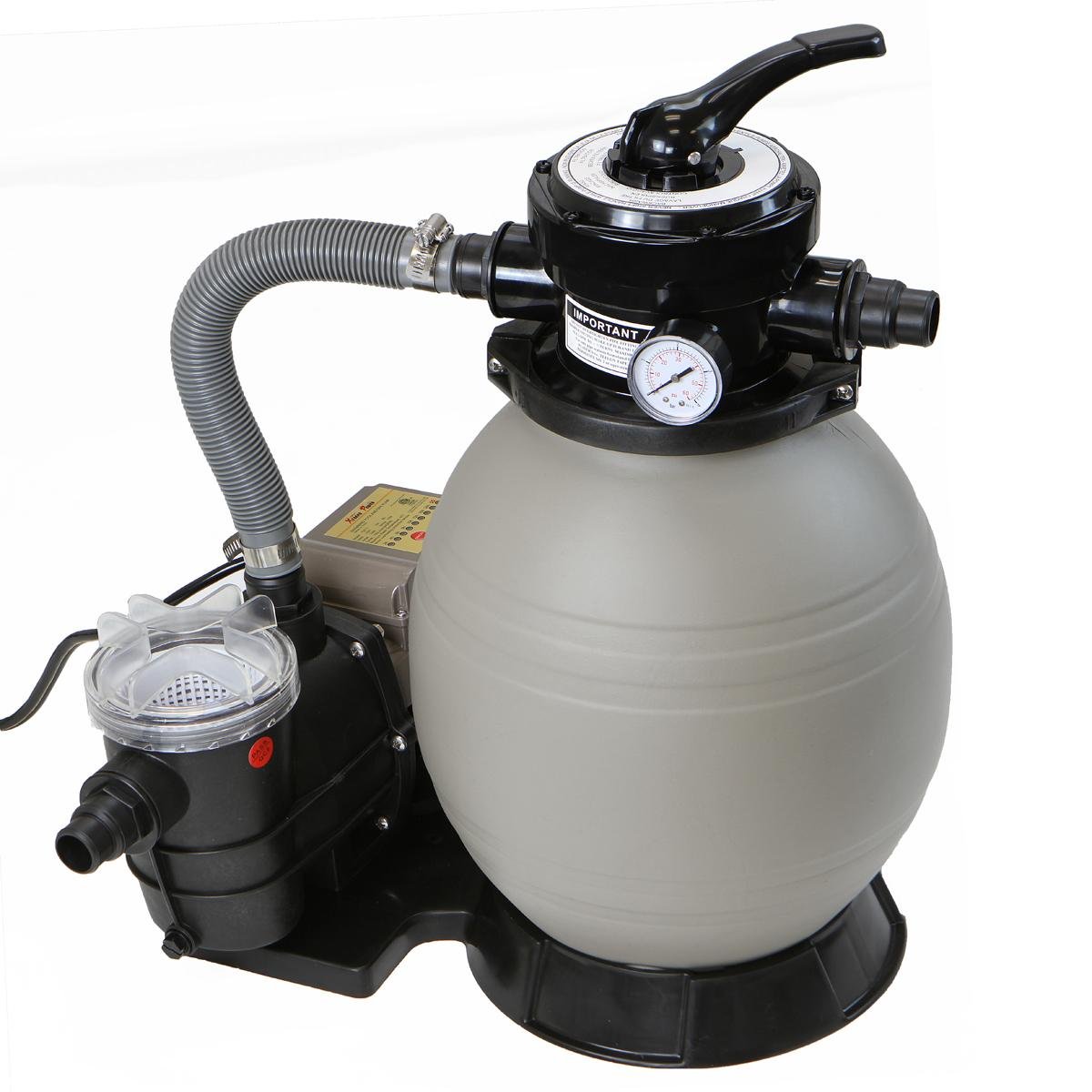

Excellent construction and reliability will keep your pool cleaner and the system is easy to operate. The top mount multi-port makes using the system and backwashing quick and easy. Since there is no cartridge to clean, this system is very low maintenance. In addition to a rugged filter tank, this filter is powered by a pool pump with a timer. You will be impressed by the flow rate in your pool and its quiet, efficient operation. Compatible with all Intex pools that have a 1 1/4″ fitting.
Features:
- Pump and filter are perfectly engineered to provide optimum flow rates that promote clean water quality
- The 4-Way multi-port provides for easy use and quick backwashing
- High efficient pump lowers system cost and ensures years of quiet operation
- The integrated controller is programmable with a self-contained (2 to 24 hours)
- The flow rate of the 2640GPH swimming pool pump works swiftly and efficiently
- The machine will protect users’ safety entirely with a built-in automatic thermal overload protector
- Pump strainer basket is the largest in its class with an easy-open, quick lock, transparent pump lid which means less work and more swimming
Specifications:
- Type: Sand Filter System
- Pool Type: Above Ground
- Filtration Area: 10,000 Gallons
- Valve Function: Filter, Backwash, Rinse, and Waste
- Timer Setting: 2 – 24hr
- Pump Power: 3/4 HP
- Voltage: 115V/60Hz
- Amps: 3.6
- Flow Max: 2640GPH
- Inlet/Outlet Fitting: 1-1/4″NPT (fits Intex 1-1/4″ hose)
- Drum Capacity: Holds up to 43lbs
- Max Temperature: 105F
- Waterproof Level: IPX5
- Certification: CSA and Listed
Package Contents:
- Sand Filter
- Pool Pump
- 4 Way Valve
- Hose Adapters
- Manual
- Sizable Capacity – This sand filter pump is housed in a one-piece 13-inch tank with a capacity of 42 pounds of sand that can filter above ground pools up to 10,000 gallons
- Low Noise Design – This sand filter pump is designed and optimized for running with low noise, to make your work more comfortable and energy efficient
- Dependable Performance – This filter keeps the sand height level to expose water to the maximum sand surface level possible for optimum filtration, consistent performance, and efficient backwashing
- Simple and Easy to Use – 4-way valve, 3-prong plug w/ electric cable, portable, quick start and simple operation, take less than 5 minutes to install; Integrated controller is programmable with a self-contained (2 to 24 hours)
- Multi-Port Filter – Multi port provides for easy use and quick back-washing
